JH-AGH95 95L High Payload Sprayer
The JH-AGH95 95L High Payload Sprayer is a robust UAV built for large-scale precision agriculture. Featuring a 95L liquid tank and a spray width of up to 15m, it delivers a work rate of 35 hectares per hour, ensuring even droplet distribution between 30–500 μm through centrifugal nozzles and dual high-flow pumps. In addition to spraying, the JH-AGH95 includes a 95L spreading system, supporting seeding, fertilising, and feeding tasks with granules sized 0.5–10 mm.
Equipped with an HD FPV camera, night navigation lights, 360° obstacle avoidance radar, and terrain-following radar, the JH-AGH95 95L High Payload Sprayer guarantees accurate navigation and safe operation in difficult environments.
- High-Capacity Spraying – A 95L centrifugal spraying tank delivers up to 24 L/min flow rate with 4 precision nozzles, covering 8–15 m width and producing fine droplets of 30–500 μm.
- Efficient Spreading – A 95 kg granule spreading system with IP67 waterproof protection, compatible with particles from 1–10 mm.
- Heavy-Lift Power –Motors generating up to 56 kg tension each support a maximum take-off weight of 254 kg, a flight speed of 15 m/s, and hovering for up to 20 minutes (no load).
- Smart Safety – Dual obstacle-avoidance radars, terrain-following radar with 45° gradient support, and an IP67-rated structure.
- Advanced Control – An H12 Android-based remote with a 5.5-inch HD screen, a 5 km signal range, and multiple auto flight modes.
Endurance Power System – Dual 18S 30000 mAh intelligent batteries with a 9,000 W smart charger, ensuring long-lasting energy and rapid recharging.
| Specification | Specification | |
| Aerial Platform | Dimensions (Aerial) | 1010 × 870 × 2320 mm |
| Dimensions (Folded) | 3350 × 3350 × 990 mm (Propeller folded); 4605 × 4605 × 990 mm (Propeller unfolded) | |
| Weight (excluding battery) | 74 kg | |
| Weight (including battery) | 104 kg | |
| Waterproof Grade | IP67 | |
| Flight Parameters | Max. Take-off Weight | 254 kg |
| Max. Flight Speed | 15 m/s | |
| Hovering Duration | 20 mins (no-load)/ 8 mins (full-load) | |
| Spraying System | Liquid Tank Capacity | 95 L |
| Nozzle Type | Centrifugal Nozzles | |
| Nozzle Quantity | 4 | |
| Spray Width | 8-15 m | |
| Atomizing Size | 30-500 μm | |
| Pump Quantity | 2 | |
| Max. System Flow Rate | 24 L/min | |
| Spreading System | Capacity | 95 kg |
| Waterproof Grade | IP67 | |
| Applicable Granule Size | 1-10 mm | |
| Propulsion System | Motor Max. Tension | 56 kg |
| Electronic Speed Controller Max. Continuous Operating Current | 160 A | |
| Electronic Speed Controller Max. Operating Voltage | 83V (13s Lipo) | |
| Obstacle Avoidance System | Front and Rear Obstacle Avoidance Radar Quantity | 2 |
| Relative Height of Safe Obstacle Avoidance | ≥2 m | |
| Relative Speed of Safe Obstacle Avoidance | ≤8 m/s | |
| Terrain-following Radar Quantity | 1 | |
| Max. Gradient | 45° | |
| Camera | Camera Type | HD FPV Camera |
| Video Resolution | 1920 × 1080 px | |
| Night Navigation | High Brightness Night Flight Lights | |
| Remote Control | Model | H12 (Android OS) |
| Remote Controller | 5.5-inch Screen, 1920 × 1080, 1,000 cd/m虏 | |
| Max. Signal Range | 5 km (no interference / obstruction) | |
| Operating Frequency | 2.400-2.483 Ghz | |
| Dimensions | 190 × 152 × 94 mm | |
| Charging Port | Type-C | |
| Duration | 6-20 h | |
| Compatible Device | H32X, H40X, H120, H160, Series M | |
| Power System | Quantity | 1 pair (2 units) |
| Model | 18S 30000mAh × 2 | |
| Size | 275 × 120 × 330 mm | |
| Weight | 15 kg | |
| Ambient Temperature for Charging | -40 °C ~ 65 °C | |
| Charging Input Quantity | 1 | |
| Charging Input | 100V-240V | |
| Smart Charger Charging Output | 120A | |
| Smart Charger | 9000W |
JH AGH95 Product Structure
carbon fiber and aviation aluminum body
95L tank capacity, 8–15m spray width, operational efficiency of up to 35 hectares

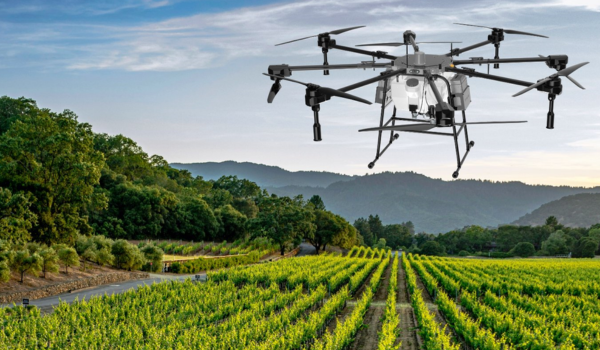

JH AGH95 Product Details
Aerial Platform
Rugged foldable frame with IP67 waterproofing, weighing 104 lbs with batteries, built for stability and durability in large-scale farming tasks.
Power System
Dual 18S 30,000mAh intelligent batteries, each weighing 15 kg, provide dependable high-capacity power. Compatible with a 9000W smart charger, they support charging across a wide temperature range from -40 °C to 65 °C for continuous field operations.

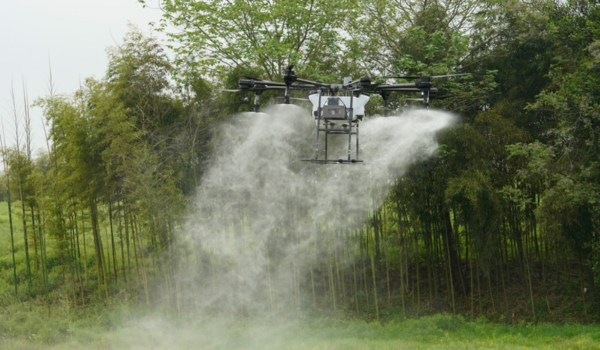

Spraying System
Features a 95L liquid tank, dual pumps, and 4 centrifugal nozzles, providing an 8–15 m spray width with precise atomization from 30–500 μm.
Package Kit
Two kits available: agricultural drone for spraying and transport drone for delivering agricultural products, supplies, seed trays, and saplings.
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
