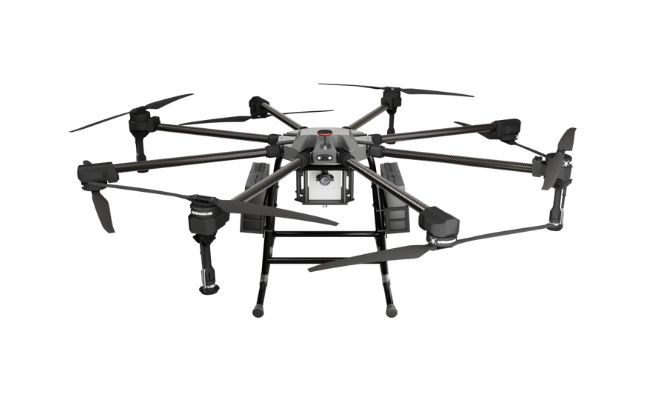

JH HL300 High Payload Transport Drone

The JH HL300 High Payload Transport Drone is an industrial-grade UAV built for professional logistics and long-range delivery. Its octocopter design ensures stable and powerful flight, enabling it to carry heavy loads for extended periods. With a maximum payload of 150 kg and a tough, durable structure, the drone remains reliable even in harsh conditions. It is perfect for tasks such as emergency rescue and industrial cargo transport, combining strength, endurance, and dependability in one platform.

Heavy Payload Capability

Supports a maximum payload of 150 kg and a rated load of 120 kg, allowing the transport of substantial materials, tools, or emergency supplies in a single flight.

Long Endurance & Distance

Achieves up to 62 minutes of flight time and 44.6 km maximum range (no load). Even with a 100 kg payload, the drone can fly for 23 minutes, covering 13.8 km, making it suitable for medium- to long-range missions under load.

Modular Payload Integration

Compatible with various payload devices such as drop boxes, remote release hooks, HD or thermal gimbals, megaphones, and illumination modules. Perfect for night operations, precise delivery, or long-range reconnaissance.

Rugged & Weatherproof

Built to IP67 waterproof standard, the drone is well-protected against dust, rain, and extreme weather, enabling reliable deployment in outdoor or disaster situations.

Smart Remote Control

Equipped with the H12 Pro controller, a 5.5-inch Android-based touch display with a 10 km range, real-time telemetry, and smooth mission planning features.

Efficient Power Management

Powered by four 18S 42,000mAh solid-state batteries, providing safe and reliable power. Supports fast charging at 60A, reducing downtime for consecutive operations.

Aerial Platform

Dimensions (folded): 1010 × 870 × 2320 mm
Dimensions (unfolded): 3350 × 3350 × 990 mm (propeller folded) / 4605 × 4605 × 990 mm (propeller unfolded)
Weight (excluding battery): 63 kg
Weight (including battery): 107.8 kg
Waterproof Grade: IP67

Flight Parameters

Take-off Weight: 257.8 kg
Flight Speed: 20 m/s
Load Weight: 150 kg
Rated Load Weight: 120 kg

Propulsion System

Motor Max. Tension (single motor): 56 kg
Electronic Speed Controller: Max. Continuous Current 120 A, Max. Operating Voltage (18S Lipo) 78.3 V

Remote Control

Remote Controller: H12 Pro, 5.5-inch screen
Signal Range (no interference): 10 km
Operating Frequency: 2.400–2.483 GHz
Dimensions: 190 × 152 × 94 mm
Charging Port: TYPE-C
Duration: 6–20 hours
Compatible Devices: H32X, H40X, H120, H160, Series M

Payload / Duration / Range (Theoretical)

0 kg: 62 mins / 44.6 km
10 kg: 60 mins / 43.2 km
20 kg: 58 mins / 41.7 km
30 kg: 55 mins / 33 km
40 kg: 50 mins / 30 km
50 kg: 45 mins / 27 km
60 kg: 40 mins / 24 km
70 kg: 35 mins / 21 km
80 kg: 32 mins / 19.2 km
90 kg: 28 mins / 16.8 km
100 kg: 23 mins / 13.8 km

Camera (Default)

Camera Type: 14x Single-light Pod
Effective Pixels: 12 Million
Lens: 14x Optical Zoom
Focus Distance: 10 mm

Power System

Battery Quantity: 2 pairs (4 units)
Model: 18S 42000mAh
Battery Size: 218 × 138 × 204 mm
Battery Weight: 11.2 kg (each)
Charging Temp. Range: –40°C to 65°C
Smart Charger: 2 pcs, Input 110–240V, Output 60A (single-channel), Rated Power 3000W

JH HL300 Product Structure

The JH HL300 adopts a foldable octocopter frame with powerful motors and modular mounts, ensuring stable heavy-lift performance and quick deployment for diverse missions.

JH HL300 Product Details

Heavy Lift, Stable Performance

The H300 can carry up to 150 kg, making it suitable for heavy cargo, rescue equipment, or construction materials. Each motor provides 56 kg of thrust, which helps keep the drone stable even under full load or in tough terrain.

Efficient Flight Profile

Flight endurance varies with payload—up to 23 minutes at 100 kg and over 60 minutes with no load. This flexibility makes the H300 suitable for both heavy-duty delivery and long-duration surveillance.

Foldable Frame & Fast Deployment

The drone’s upward-folding arms and small folded size make it easy to carry. Setup and deployment are quick, enabling fast responses during urgent missions.

Multi-Function Payload Mounts

The H300 supports advanced payloads, including:

Automatic release hooks (≤80 kg)
Drop rope systems
5 kg sealed transport boxes
HD and thermal camera pods (up to 30× zoom)
Megaphones and lighting systems for emergency broadcasts or nighttime missions

Reliable Power System

The intelligent battery system operates from –40°C to 65°C, ensuring dependable performance in both arctic and desert environments. The smart charger delivers up to 3,000 W, allowing for quick turnaround between flights.

Package Kit

It comes with remote control, intelligent batteries, chargers, gimbals, and transport tools in the standard package, with optional upgrades like an aluminum transport case for added durability and convenience.
