JH-M30 30L Advanced Agricultural Drone
The JH-M30 30L Advanced Agricultural Drone is a powerful UAV built for precision spraying and spreading. With a 30L liquid tank and a spray width of 8–15 meters, it achieves a work rate of up to 18 acres per hour, ensuring accurate droplet distribution between 30–400 μm through its dual Centrifugal Nozzles.
The M30 is more than just a sprayer — it also has a granule spreading system with a 30L capacity, making it versatile for tasks like sowing, fertilizing, and feeding. Built with a lightweight yet durable frame and foldable design, it combines portability with reliability.Equipped with dual obstacle avoidance radars, a terrain-following system, HD FPV camera, and night navigation lights, the JH-M30 30L Advanced Agricultural Drone guarantees safe and accurate operation. Controlled via the H12 smart controller with a 5.5-inch high-brightness screen, it provides intuitive and efficient management of agricultural tasks.
- High Efficiency – Features a 30L smart spraying tank and dual centrifugal nozzles, delivering up to 20 L/min flow rate, atomizing droplets between 30–500 μm over an 8–20 m spray width.
- Robust Flight Capability – Motors producing up to 36kg of thrust support a maximum takeoff weight of 69.1 kg, a flight speed of 15 m/s, and stable hovering for up to 28 minutes (no load).
- Enhanced Safety – Dual obstacle-avoidance radars, a 360° radar system, and terrain-following radar that supports up to 45° gradients.
- Smart Control – H12 Android remote controller with a 5.5-inch HD screen, up to 5 km transmission range.
- Reliable Power Supply – A 14S 30,000 mAh smart battery combined with a 7200W fast charger.
| Specification | ||
| Aerial Platform | Dimensions (Folded) | 985×685×808 mm |
| Dimensions (Unfolded) | 2432×2576×775 mm | |
| Weight (excluding battery) | 28 kg | |
| Weight (including battery) | 39.1 kg | |
| Waterproof Grade | IP67 | |
| Flight Parameters | Max. Take-off Weight | 69.1 kg |
| Max. Flight Speed | 15 m/s | |
| Max. Flight Altitude | ≤ 20 m | |
| Hovering Duration | 28 mins (with no-load); 8 mins (with full-load) | |
| Spraying System | Liquid Tank Capacity | 30 L |
| Nozzle Type | Centrifugal Nozzles | |
| Nozzles Quantity | 2 | |
| Spray Width | 8-20 m | |
| Atomizing Size | 30-500 μm | |
| Pump Quantity | 2 | |
| Max. System Flow Rate | 20 L/min | |
| Spreading System | Capacity | 42 L |
| Waterproof Grade | IP67 | |
| Applicable Granule Size | 0.5-10 mm | |
| Propulsion System | Motor Max. Tension (single motor) | 36 kg |
| Foldable Propeller Model | 4314 | |
| Electronic Speed Controller Max. Continuous Operating Current | 145 A | |
| Electronic Speed Controller Max. Operating Voltage | 65 V | |
| Obstacle Avoidance System | Front and Rear Obstacle Avoidance Radar Quantity | 2 |
| Relative Height of Safe Obstacle Avoidance | ≥ 2 m | |
| Relative Speed of Safe Obstacle Avoidance | ≤ 8 m/s | |
| Terrain-following Radar Quantity | 1 | |
| Max. Gradient (at flight speed of ≤ 2 m/s) | 45° | |
| 360° Obstacle Avoidance Radar Quantity | 1 | |
| Obstacle Avoidance Angle (upward) | 360° | |
| Camera | Camera Type | HD FPV Camera |
| Video Resolution | 1920×1080 px | |
| Night Navigation | High Brightness Night Flight Lights | |
| Remote Control | Model | H12 (Android OS) |
| Remote Controller | 5.5-inch Screen, 1920×1080, 1,000 cd/m² | |
| Max. Signal Range (no interference / obstruction) | 5 km | |
| Operating Frequency | 2.400-2.483 Ghz | |
| Dimensions | 190×152×94 mm | |
| Charging Port | TYPE-C | |
| Duration | 6-20 h | |
| Compatible Device | H32X, H40X, H120, H160, Series M | |
| Power System | Quantity | 1 |
| Model | 14S 30000mAh | |
| Rated Capacity | 60.9V / 100A / 7200W | |
| Size | 245×140×320 mm | |
| Weight | 11.1 kg | |
| Ambient Temperature for Charging | -40℃ – 65℃ | |
| Charging Input Quantity | 1 | |
| Charging Input | 100V-240V 7200W | |
| Charging Output | 100A (single-channel charging) | |
| Rated Power | 7200W | |

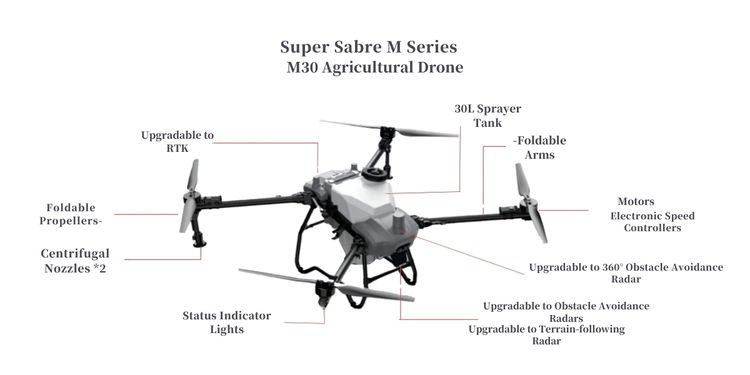

JH M30 Product Structure
carbon fiber and aviation aluminum body
30L tank capacity, 8–15m spray width, operational efficiency of up to 18 hectares

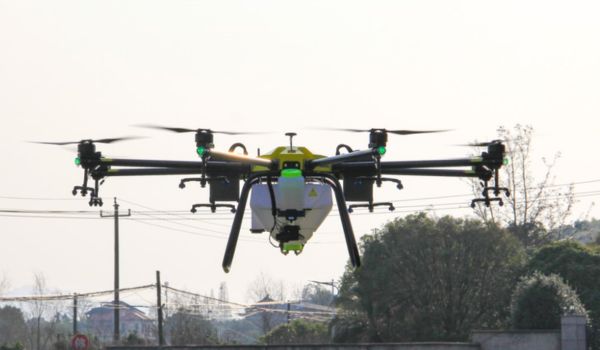

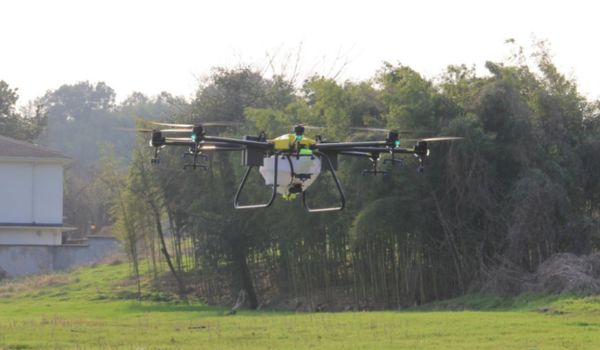

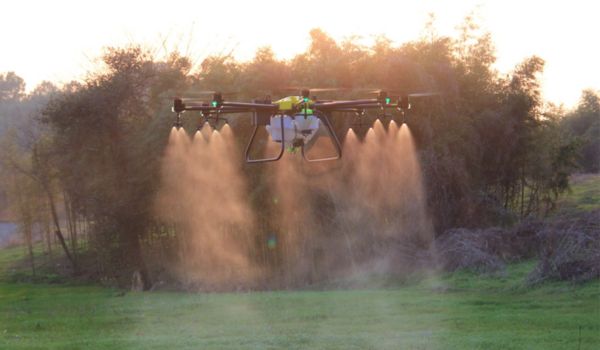

JH M30 Product Details
Aerial Platform
Foldable design with IP67 waterproofing, weighing 39.1 kg with battery, built for stability and easy transport in small to medium-scale farming operations.
Propulsion System
High-performance motors combined with 4314 foldable propellers, supported by an electronic speed controller capable of handling up to 145 A at 65 V, ensuring reliable lift and smooth flight.
Camera
HD FPV camera with 1920×1080 resolution and high-brightness night lights, delivering clear real-time visuals for precise operation in any lighting conditions.
Package Kit
Two kits available: agricultural drone for spraying and transport drone for delivering agricultural products, supplies, seed trays, and saplings.
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
Related Products
Related products
-
JH-M65 62L Extended Payload Agricultural Drone
JH-M65 62L Extended Payload Agricultural Drone, efficient crop spraying, high capacity, and reliable performance for modern farming.
-
JH-M50 50L High-Capacity Sprayer Drone
JH-M50 50L High-Capacity Sprayer Drone, durable and efficient for precise crop spraying and improved farm productivity.
-

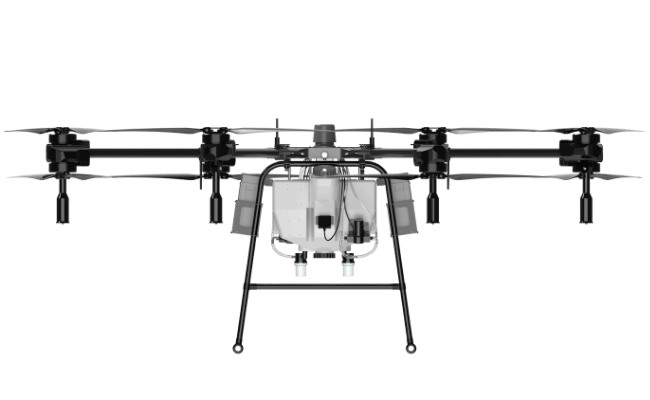

JH-AGH95 95L High Payload Sprayer
JH-AGH95 95L High Payload Sprayer, built for heavy-duty agricultural use with efficient, precise spraying performance.
-

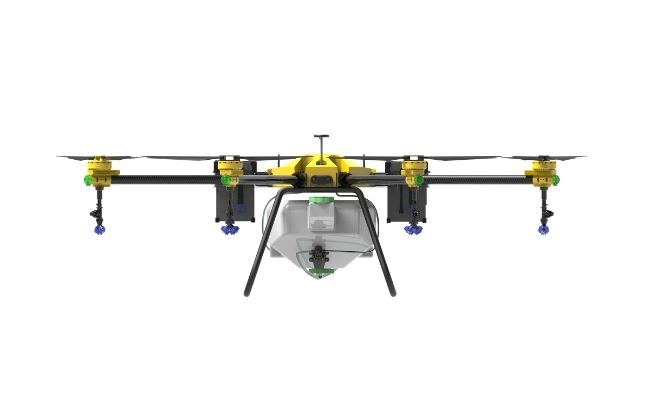

JH-AG52 52L Mid-Capacity Heavy-Duty Sprayer
