JH M400 Agricultural Drone
The JH M400 Agricultural Drone is a large-scale spraying and spreading platform designed for high-efficiency farmland operations. Equipped with a 150-liter liquid tank, 150 kg capacity spreader, and a powerful triple 18S battery system, it supports heavy-duty agricultural workloads with stable performance.
With terrain-following radar, obstacle-avoidance sensors, HD FPV camera, IP67 protection, and an Android-based G12 controller, the JH M400 delivers precise, safe, and intelligent field operation day and night.
High-Capacity Loading: 150 L spraying tank and 150 kg spreading payload for large-area field operations.
Dual Application Modes: Quick switching between spraying and spreading modules to match different tasks.
Multi-Radar Safety: Obstacle avoidance, terrain following, and slope handling up to 45°.
Extended Spray Coverage: 8–15 m spray width powered by centrifugal nozzles and dual high-flow pumps.
IP67 Protection: Waterproof design applied across the airframe and application systems.
High-Power System: Triple 18S 35,000mAh batteries with high-thrust motors and 300 A ESC support.
Clear Visual Control: 1080p FPV camera with night navigation lighting and a 1000-nit Android controller.
| Category | Parameter | Specification |
| Aerial Platform | Folded Dimensions | 1450*1150*1005 mm |
| Unfolded Dimensions (Blades Closed) | 2800*2800*1005 mm | |
| Unfolded Dimensions (Blades Open) | 4400*4400*1005 mm | |
| Weight (without battery) | 80 kg | |
| Weight (with battery) | 125 kg | |
| Flight Parameters | Max Takeoff Weight | 275 kg |
| Max Flight Speed | 15 m/s | |
| Hovering Time (No Load) | 20 min | |
| Hovering Time (Fully Loaded) | 8 min | |
| Waterproof Rating | IP67 | |
| Spraying System | Tank Capacity | 150 L |
| Nozzle Type | Centrifugal Nozzle | |
| Number of Nozzles | 4 | |
| Spraying Width | 8~15 m | |
| Droplet Size | 30~500 μm | |
| Pump Max Flow Rate | 24 L / min | |
| Number of pumps | 2 | |
| Spreader System | Capacity | 150 kg |
| Waterproof Rating | IP67 | |
| Applicable Particle Size | 1~10 mm | |
| Power System | Motor Max Thrust (Single) | 72 kg |
| Electronic Speed Controller (ESC) Max Continuous Allowable Current | 300 A | |
| ESC Max Allowable Voltage (18S Li-ion Battery) | 78.3 V | |
| Radar & Sensors | Front/Rear Obstacle Avoidance | Yes |
| Safe Obstacle Avoidance Distance | ≥ 2 m | |
| Safe Obstacle Avoidance Speed | ≤ 8 m/s | |
| Terrain-Following Radar | Yes | |
| Max Slope (Flight Speed ≤ 2m/s) | 45° | |
| Camera | Type | HD FPV Camera |
| Video Resolution | 1920*1080 px | |
| Night Navigation | High-Brightness Night Flight Lights | |
| Remote Controller | Model | G12 (Android OS) |
| Screen Size & Resolution | 5.5-inch, 1920×1080 | |
| Screen Brightness | 1,000 cd/m² | |
| Max Signal Range (No Interference/Obstruction) | Not Specified (Value missing from source) | |
| Operating Frequency | 2.400 MHz / 5800 MHz | |
| Dimensions | 194.3*142*94.9 mm | |
| Charging Interface | TYPE-C | |
| Battery Life | 4~6 H | |
| Power System | Battery Quantity | 1 Set (3 Units) |
| Battery Model | 18S 35000mAh *3 | |
| Battery Dimensions | 275*120*330 mm | |
| Battery Weight | 15 kg *3 | |
| Charging Environment Temperature | -40℃ ~ 65℃ | |
| Charger Quantity | 1 | |
| Charging Input | 110V~240V | |
| Charging Output | 120 A | |
| Rated Power | 7200 W |

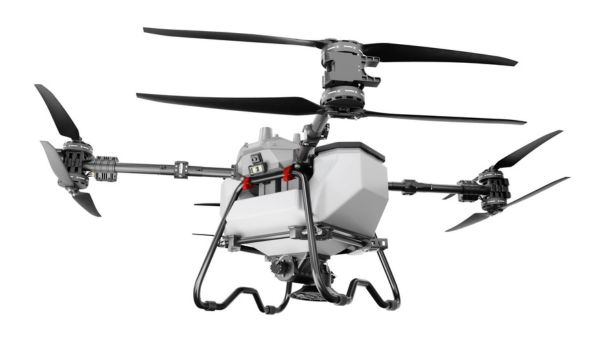

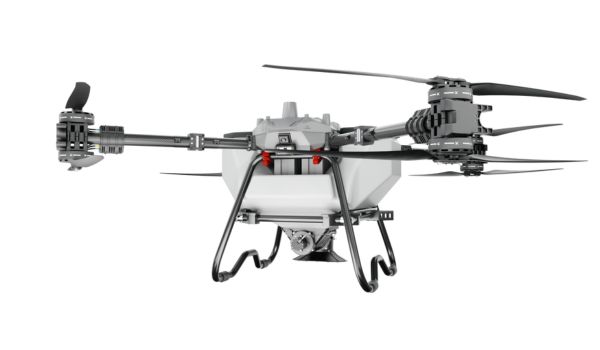

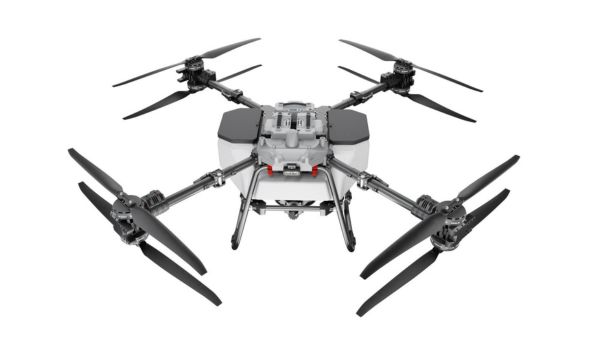

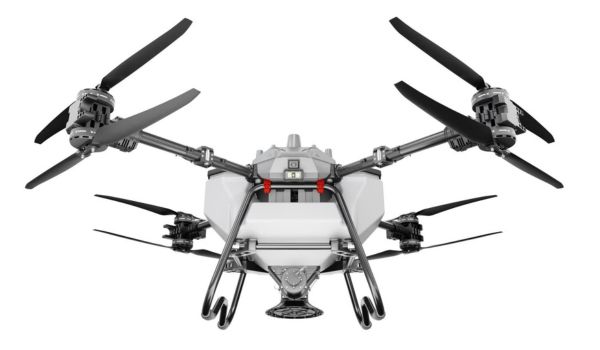

JH M400 Product Details
Foldable Dimensions
Folds down to 1450×1150×1005 mm, allowing compact transport while expanding to a full 4400 mm blade span for field operation.
Spraying Performance
Dual pumps deliver 24 L/min and four centrifugal nozzles produce 30–500 μm droplets for stable and uniform application.
Safety Sensing System
Obstacle-avoidance radar maintains a safe distance of ≥2 m and supports avoidance speeds up to 8 m/s for reliable operation.
Payload Power Support
Triple 18S 35,000mAh batteries provide the sustained output needed to lift up to a 275 kg maximum takeoff weight.
Package Kit
Two kits available: agricultural drone for spraying and transport drone for delivering agricultural products, supplies, seed trays, and saplings.
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
Related Products
Related products
-

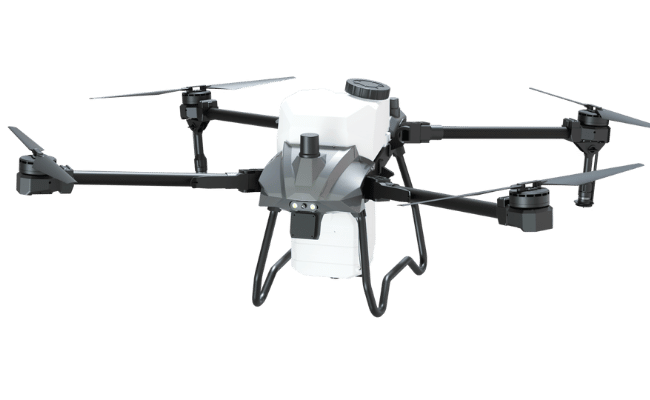

JH-M65 62L Extended Payload Agricultural Drone
JH-M65 62L Extended Payload Agricultural Drone, efficient crop spraying, high capacity, and reliable performance for modern farming.
-

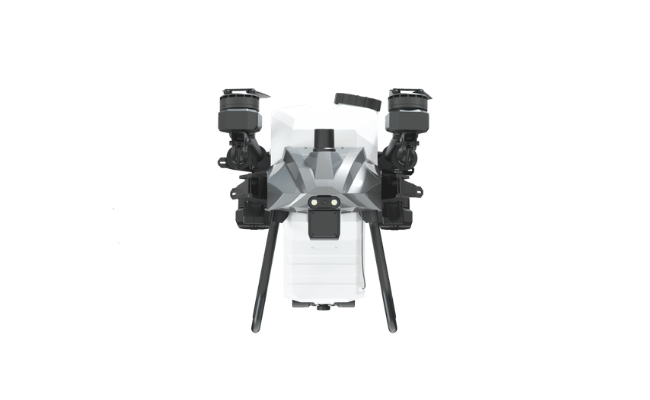

JH-M30 30L Advanced Agricultural Drone
