JH M400 Transportation Drone
The JH M400 Drone is a next-generation heavy-lift transport UAV engineered for industrial logistics, emergency response, and long-distance delivery missions.
With a robust 333 kg MTOW, up to 200 kg payload capacity, and a flexible endurance profile reaching 45 minutes / 46.5 km at zero load, the HL400 offers powerful lifting performance and adaptable mission capability.
Its IP67-rated aerial platform, high-thrust propulsion system, and intelligent triple-battery architecture enable reliable operations across challenging terrains and demanding environments.
Long-Distance Control — 10 km maximum signal range with H12Pro 5.5-inch controller.
Dual-Axis 2K Camera Pod — High-resolution imaging for navigation, inspection, and real-time monitoring.
Industrial-Grade Build — Reinforced structure, precision folding mechanisms, and durable external materials.
IP67 All-Weather Aerial Platform — Fully protected against dust and water for high-reliability missions.
| 1. Aerial Platform | ||
| Dimensions (folded) | 1570 × 1140 × 933 mm | |
| Dimensions (unfolded, propeller folded) | 1985 × 1860 × 933 mm | |
| Dimensions (unfolded, propeller unfolded) | 4345 × 4345 × 933 mm | |
| Weight (excluding battery) | 87.5 kg | |
| Weight (including battery) | 132 kg | |
| Waterproof Grade | IP67 | |
| 2. Flight Parameters | ||
| Max. Take-off Weight | 333 kg | |
| Max. Flight Speed | 15 m/s | |
| Max. Load Weight | 200 kg | |
| Rated Load Weight | 180 kg | |
| 3. Propulsion System | ||
| Motor | Motor Max. Tension (single motor) | 88 kg |
| Electronic Speed Controller | Max. Continuous Operating Current | 180 A |
| 4. Remote Controller | ||
| Remote Controller | H12Pro, 5.5-inch Controller with Screen | |
| Max. Signal Range (no interference/obstruction) | 10 km | |
| Operating Frequency | 2,400–2,483 MHz | |
| Dimensions | 190 × 152 × 94 mm | |
| Charging Port | TYPE-C | |
| Duration | 6–20 h | |
| Compatible Device | M400 Transport Model | |
| 5. Payload /Flight Duration /Range | ||
| Payload | Duration | Range |
| 150 kg | 15 min | 12 km |
| 100 kg | 18 min | 15.7 km |
| 80 kg | 22 min | 18.6 km |
| 70 kg | 24 min | 25.8 km |
| 60 kg | 28 min | 29.4 km |
| 50 kg | 30 min | 32.5 km |
| 40 kg | 34 min | 34.7 km |
| 30 kg | 37 min | 36.9 km |
| 20 kg | 40 min | 41 km |
| 10 kg | 42 min | 43.2 km |
| 0 kg | 45 min | 46.5 km |
| 6. Camera | ||
| Camera Type | Dual-axis Gimbal Pod | |
| Effective Pixels | 2K | |
| Min. Focus Distance | 24 mm | |
| 7. Power System | ||
| Intelligent Lithium Battery | Quantity | 1 set (3 units) |
| Model | 18S 35000mAh × 3 | |
| Size | 222 × 104 × 245 mm | |
| Weight | 15 kg × 3 | |
| Ambient Temperature for Charging | -40°C to 65°C | |
| Intelligent Charger | Quantity | 1 |
| Charging Input | 100V–240V | |
| Charging Output | 120A (single-channel charging) | |
| Rated Power | 7200W | |

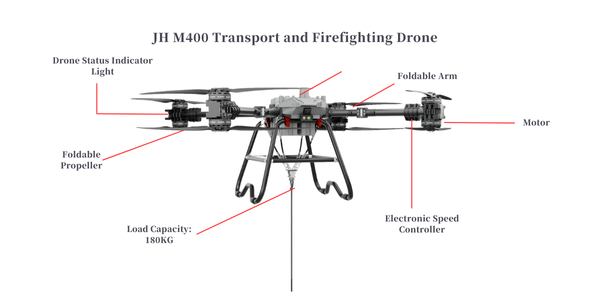

JH M400 Product Structure
The JH M400 adopts foldable propellers and with powerful motors and modular mounts, ensuring stable heavy-lift performance and quick deployment for diverse missions.

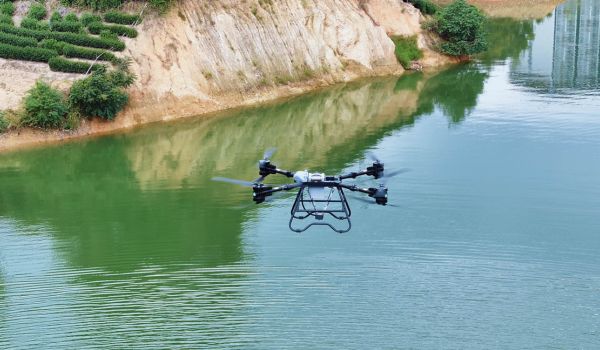

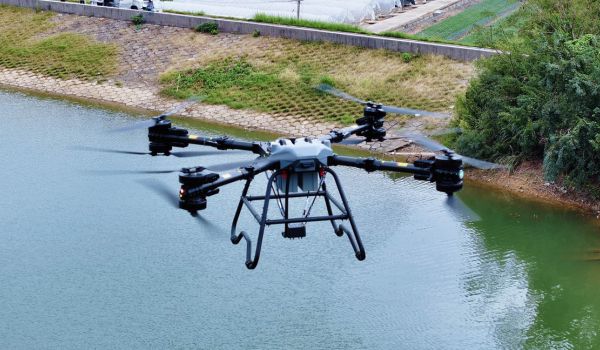

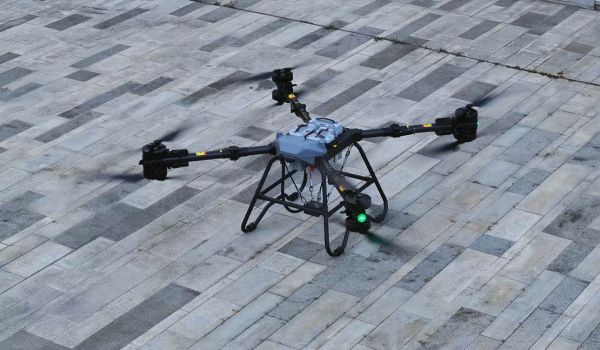

JH M400 Product Details
Aerial Platform
The HL400 features a robust airframe with unfolded dimensions of 4345 × 4345 × 933 mm, constructed using reinforced composite materials and aviation-grade aluminum for high structural strength.
Its design supports IP67 all-weather protection, enabling stable operation in rain, dust, and harsh field environments.
Flight Parameters
With a maximum take-off weight of 333 kg, the HL400 delivers heavy-lift performance for industrial logistics.
It supports up to 200 kg maximum payload (180 kg rated) and reaches flight speeds of 15 m/s, enabling efficient mid- to long-range missions.
Propulsion System
The aircraft is powered by high-thrust motors providing 88 kg maximum tension per motor, paired with a 180 A continuous-current ESC for stable high-load performance.
This propulsion setup ensures reliable lift capacity and responsiveness across varying payload levels.
Power System
The aircraft uses a triple 18S 35000mAh intelligent battery (one set, three units), each weighing 15 kg, providing stable high-power output for heavy-lift missions.
Charging is supported across a wide ambient temperature range of –40°C to 65°C, paired with a 7200W intelligent charger delivering 120A single-channel output for rapid turnaround.
Package Kit
It comes with remote control, intelligent batteries, chargers, gimbals, and transport tools in the standard package, with optional upgrades like an aluminum transport case for added durability and convenience.
Standard Package
Remote Control
×1
High-capacity solid-state battery
×4
Intelligent charger
×2
Flight Control
1
GNSS
1
Dual-axis gimbal pod
1
Drop release + gimbal pod
1
Transport box + gimbal pod
1
Toolkit
1
Default wooden case
1
Optional Package
Aluminium Transport Case (Optional)
