JH-M65 62L Extended Payload Agricultural Drone
The JH-M65 62L Extended Payload Agricultural Drone is built for large-scale precision farming, featuring a 62L spray tank and an 8–15m spray width. With a maximum operation efficiency of 25 hectares per hour, it provides even droplet distribution between 30–500 μm, powered by dual centrifugal nozzles.
Safety and ease of operation are enhanced by advanced features such as multi-directional obstacle avoidance, terrain-following radar, and an HD FPV camera with night navigation lights. Combined with the H12 smart controller’s high-brightness display and long-range transmission, operators can confidently manage missions even in tough environments.
- High-Capacity – Features a 62L liquid tank, dual centrifugal nozzles, and a maximum flow rate of 20 L/min, providing efficient coverage with an 8–20 m spray width and droplet size adjustable from 30–500 μm, suitable for various crops and terrains.
- Reliable Flight Performance – With a 111 kg maximum take-off weight and 56 kg of thrust per motor, the aircraft reaches a flight speed of 15 m/s while maintaining stable hovering for 28 minutes (no load) or 7 minutes under full load, ensuring efficiency in large-scale operations.
- Comprehensive Safety System – Includes front and rear obstacle avoidance radars, 360° upward obstacle detection, and terrain-following radar capable of handling 45° gradients, ensuring secure navigation even in complex environments.
- Smart Operation – The H12 Android-based controller features a 5.5-inch FHD display, 5 km range, HD FPV visuals, and high-brightness night flight lights.
- Powerful Endurance – Driven by an 18S 30,000 mAh smart battery and a 9000W fast charger with 120A output, supports long-lasting operation from -40℃ to 65℃.
| Specification | ||
| Aerial Platform | Dimensions (Folded) | 1240×840×872 mm |
| Dimensions (Unfolded) | 2919×3080×872 mm | |
| Weight (excluding battery) | 34 kg | |
| Weight (including battery) | 49 kg | |
| Waterproof Grade | IP67 | |
| Flight Parameters | Max. Take-off Weight | 111 kg |
| Max. Flight Speed | 15 m/s | |
| Max. Flight Altitude | ≤ 20 m | |
| Hovering Duration | 28 mins (no-load); 7 mins (full-load) | |
| Spraying System | Liquid Tank Capacity | 62 L |
| Nozzle Type | Centrifugal Nozzles | |
| Nozzle Quantity | 2 | |
| Spray Width | 8-20 m | |
| Atomizing Size | 30-500 μm | |
| Pump Quantity | 2 | |
| Max. System Flow Rate | 20 L/min | |
| Spreading System | Capacity | 70 L |
| Waterproof Grade | IP67 | |
| Applicable Granule Size | 0.5-10 mm | |
| Propulsion System | Motor Max. Tension (single motor) | 56 kg |
| Foldable Propeller Model | 5620 | |
| Electronic Speed Controller Max. Continuous Operating Current | 160 A | |
| Electronic Speed Controller Max. Operating Voltage | 83 V | |
| Obstacle Avoidance System | Front and Rear Obstacle Avoidance Radar Quantity | 2 |
| Relative Height of Safe Obstacle Avoidance | ≥ 2 m | |
| Relative Speed of Safe Obstacle Avoidance | ≤ 8 m/s | |
| Terrain-following Radar Quantity | 1 | |
| Max. Gradient | 45° (at flight speed of ≤ 2 m/s) | |
| 360° Obstacle Avoidance Radar Quantity | 1 | |
| Obstacle Avoidance Angle (upward) | 360° | |
| Camera | Camera Type | HD FPV Camera |
| Video Resolution | 1920×1080 px | |
| Night Navigation | High Brightness Night Flight Lights | |
| Remote Control | Model | H12 (Android OS) |
| Remote Controller | 5.5-inch Screen, 1920×1080, 1,000 cd/m² | |
| Max. Signal Range | 5 km (no interference / obstruction) | |
| Operating Frequency | 2.400-2.483 Ghz | |
| Dimensions | 190×152×94 mm | |
| Charging Port | TYPE-C | |
| Duration | 6-20 h | |
| Compatible Device | H32X, H40X, H120, H160, Series M | |
| Power System | Quantity | 1 |
| Model | 18S 30000mAh | |
| Rated Capacity | 78.3V / 120A / 9000W | |
| Size | 275×120×330 mm | |
| Weight | 15 kg | |
| Ambient Temperature for Charging | -40℃ – 65℃ | |
| Charging Input Quantity | 1 | |
| Charging Input | 100V-240V 9000W | |
| Charging Output | 120A (single-channel charging) | |
| Rated Power | 9000W | |
JH-M65 Product Structure
Extended Payload Agricultural Drone with carbon fiber and aviation
Aluminum body, 62L tank capacity, 8–15m spray width, and operational efficiency of up to 22 hectares.
JH-M65 Product Details
Aerial Platform
Foldable frame with IP67 waterproofing, weighing 49 lbs with battery, designed for stability and durability in medium- to large-scale agricultural work.
Obstacle Avoidance
Dual front and rear radars, 360° detection, and terrain-following capability keep the drone safe at heights above 2 meters, handling slopes up to 45° and speeds up to 8 m/s.
Propulsion System
Powerful motors producing 56 kg of thrust each, paired with 5620 foldable propellers and high-capacity electronic speed controllers, ensuring strong lift and smooth, reliable flight.
Camera
HD FPV camera with 1920×1080 resolution and high-brightness night lights, delivering clear real-time visuals for precise operation in any lighting condition.
Package Kit
Two kits available: agricultural drone for spraying and transport drone for delivering agricultural products, supplies, seed trays, and saplings.
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
Agricultural Kit
Frame
X1
Motors
X8
Nozzles
X4
Water Pumps
X4
GNSS
X1
(GPS/Beidou/GLONASS)
X1
Status Indicator Light
X1
FPV Camera
X1
Night Navigation Light
X1
Remote Control
X1
Intelligent Battery
X2
Intelligent Charger
X1
Charging Adapter Cable
X2
Generator (Optional)
X1
Terrain Following Radar
X1
Related Products
Related products
-
JH M400 Agricultural Drone
JH M400 Agricultural Drone – High-Efficiency Spraying with Precision, Stability, and Smarter Farm Operations.
-
JH-M50 50L High-Capacity Sprayer Drone
JH-M50 50L High-Capacity Sprayer Drone, durable and efficient for precise crop spraying and improved farm productivity.
-

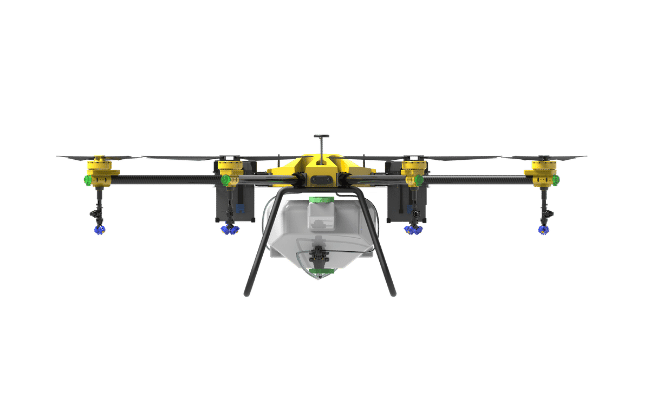

JH-AG52 52L Mid-Capacity Heavy-Duty Sprayer
