JingHong FR300 Firefighting Drone with 150 kg Payload
This JingHong FR300 Firefighting Drone, capable of carrying a 150 kg payload, is designed for rapid aerial suppression. It features a bomb unit measuring 650 mm in length and can be filled with either aqueous extinguishing agents or AB dry powder, with a net weight of over 20 kg.
This drone provides quick and efficient support in areas where ground access is challenging or unsafe. It can combat early-stage wildfires, regulate fires in warehouses, factories, or storage yards, and deliver aerial assistance in tall or remote locations, ensuring prompt and safe suppression.
- Large-Format Drone Platform: Unfolded carbon fiber and aeronautical aluminium airframe measuring 4605 mm³, weighing 63 kg with a maximum take-off capacity of 257.8 kg.
- Extended Performance: Provides a 63-minute flight time, supports a maximum payload of 120 kg, reaches a top speed of 20 m/s, and operates within a 15 km radius.
- High-Pressure Fire Suppression: Features a 180 cm aluminium fire hose with 40 mm diameter, delivering 9–15 Pa water pressure through a 10 mm outlet for a 15 m jet range.
- Multi-Bomb Capacity: Carries four 23 kg bombs, each containing ≥20 kg of aqueous or dry powder agent, with a dispersion radius of ≥5 m and coverage area of ≥50 m².
- Precision Delivery System: Includes wireless proximity fuzing at 0–6 m height, a delivery range of 90–150 m, and a double-insured explosion-proof safety system.
| Parameter | ||
| Drone | Unfolded Size | 4605mm × 4605mm × 4605mm |
| Product Material | Carbon fiber + 7075 aviation aluminum | |
| Weight | 63 kg | |
| Maximum Flight Duration | 63 min | |
| Maximum Altitude Limit | 4500 m | |
| Charger Power | 3000 W | |
| Operation Height | ≤ 1000 m | |
| Maximum Flight Speed | 20 m/s | |
| Maximum Rated Load | 120 kg | |
| Flight Radius | ≤ 15 km | |
| Maximum Take – off Weight | 257.8 kg | |
| Airframe Service Life | ≥ 10 years | |
| Fire Hose | Length | 180 cm |
| Material | Space aluminum | |
| Pipe Diameter | 40 mm | |
| Water Pressure (Test Data) | 9 – 15 Pa | |
| Water Outlet Diameter | 10 mm | |
| Jet Distance (Test Data) | 15 m | |
| Weight | 2.65 kg | |
| Maximum Length of Hose (Test Data) | 100 m | |
| Caliber | Φ 260 mm | |
| Total Length of Bomb | 650 mm | |
| Fire Extinguishing Bomb (Maximum Load: 23 kg * 4 pieces) | Type of Fire Extinguishing Agent | Aqueous fire extinguishing agent or AB ordinary dry powder |
| Net Weight of Fire Extinguishing Agent | ≥ 20 kg | |
| Dispersion Radius | ≥ 5 m | |
| Coverage Area | ≥ 50 m² | |
| Safety Radius | ≥ 20 m | |
| Release Height for Detonation | Wireless proximity fuze height 0 – 6 m | |
| Delivery Height | 90 – 150 m | |
| Operating Environment Temperature | – 20℃ – 60℃ | |
| Fully Sealed Loading | Waterproof, moisture – proof | |
| Safety Fuze | Double insurance, explosion – proof | |
JH-FR300 Product Details

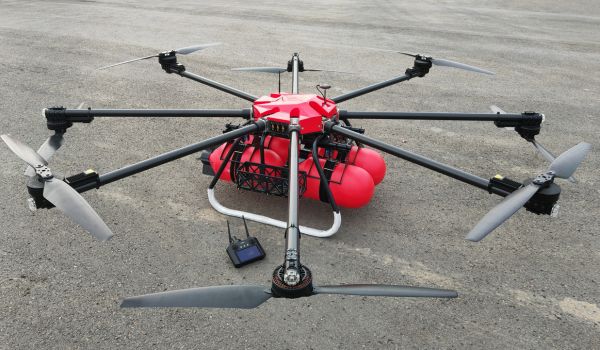

Firefighting Drone
Constructed with carbon fiber and aviation aluminium, this 63 kg drone supports up to 120 kg payload, 63 minutes of flight time, and a maximum take-off weight of 257.8 kg.
Fire Hose
A 180 cm aluminium fire hose with a 40 mm diameter, a jet distance of 15 m, and extendable length up to 100 m.
Fire-Extinguishing Bombs
Supports four bombs (23 kg each) with 20 kg extinguishing agent per unit, providing coverage of ≥ 50 m² and safe wireless deployment.
